Standard one-wavelength matrices
Currently we offer the following standard LED matrix type with a one peak wavelength and increased optical power - 4-element LED matrix with a one peak wavelength at 3.4 µm or 4.3 µm in TO18 package with a cap/reflector and with a sapphire window or in TO5 package with a built-in thermoelectric module with a cap/reflector and with a sapphire window.

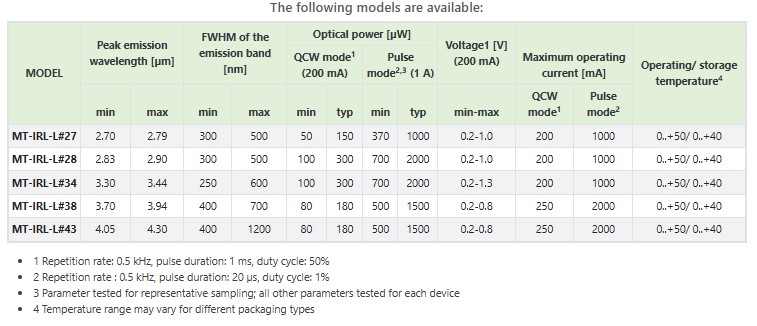

Model Peak
Wavelength(
㎛FWHM
(nm)Optical power
(QCW, mW)Voltage
(V)Current
(QCW, mA)Operating
temperature(
℃)(min~max) (min~max) (min~typ) (min~max) Lms34LED-4M 3.3 ~ 3.44 250 ~ 600 70 ~ 100 0.3 ~ 1.0 1000 -60 ~ +90 Lms43LED-4M 4.10 ~ 4.30 400 ~ 1200 50 ~ 100 0.3 ~ 0.7 1000 -60 ~ +90
자세한 규격을 위해서는 아래를 방문해 주세요
http://www.microtech.bg/
